ARTEMIDE

INGROUND FOOT LIGHT

OUTDOOR LIGHTING

T415500W00

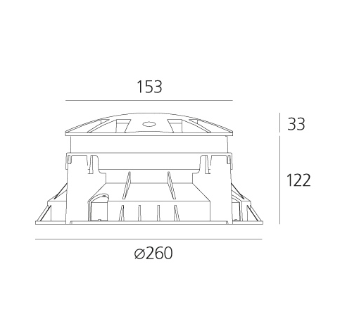

Light fixture with high-performance LED light sources. Drive-over recessed floor installation with floorprotruding cap. All the versions are drive-over up to 5000Kg. Due to the low height of the cap, Megara 90 is also suitable for installation in walk-over areas, being careful to avoid areas of direct transit. Composed by body, cap, diffuser, recessing box. Body and cap in painted EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable. Electronic ballast integrated in the body. Diffuser in UV resistant polycarbonate.Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial emission beam optic. White monochromatic LEDs available in 3 colour temperatures in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67.ENEC approved.Insulation class I.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

17LM

Finishing

ANTHRACITE GREY

IP Rating

IP65

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LUMASCAPE

WALL LIGHT

OUTDOOR LIGHTING

The LS731LED Portico is a compact, fixed position, direct or indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from 316 marine grade stainless steel with Lumascape’s proprietary ElectroPolishPlus™ surface treatment, to provide a long life even in coastal environments. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

ENDO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed downlight in matt white aluminium frame and mirror finish reflector. Cut-out 100mm. IP20

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Pivot 1.7 outdoor applications surface mounted (ceiling, wall, floor) housing made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available for 5°, 8°, 11°, 17°, sharp 21°, 34°, 43°, 45°, sharp 51°, 54°, 15°x47°, 46°x16°. IP66,IK07.
