LINEALIGHT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

ORMA_C_81224W30

Single emission downlights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP67,IK10.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

224LM

Finishing

STAINLESS STEEL

IP Rating

IP67

Color Rendering

CRI 80

Driver

DALI Driver

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

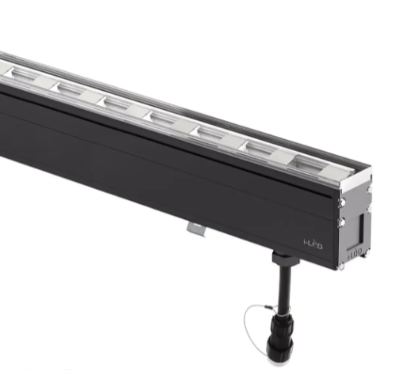

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.500 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99765 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector have chrome black, silver and white finish available. Black finish and honeycomb accessory available upon request.
