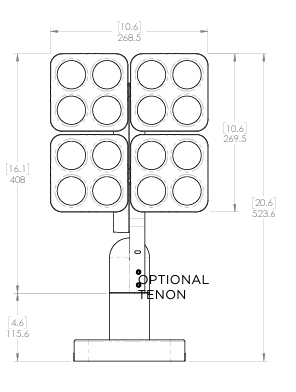

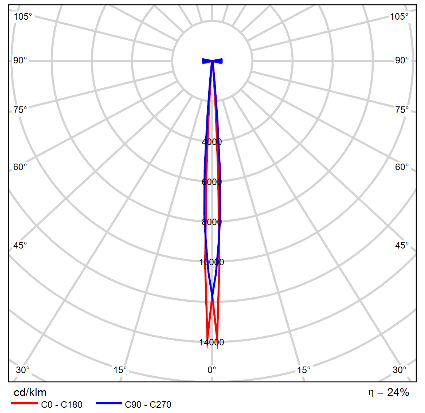

RISE F170 QUAD F170-4F-HO-30-9-05-KH-C

Rise is a system of beautifully designed outdoor rated luminaires that provide efficient and powerful light using the latest in led technology. Rise f170 quad is a unique configuration that groups four rise f170 singles allowing you to quadruple your lumen power, delivering up to 17,800 lumens. This unique fixture can be used to powerfully light one object or aimed separately, allowing you to illuminate multiple applications. This powerful and compact led light fixture can be used in spot, accen

Specification

Power
156W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
11512LM
Finishing
BLACK
IP Rating
IP 66
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with three medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 66 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

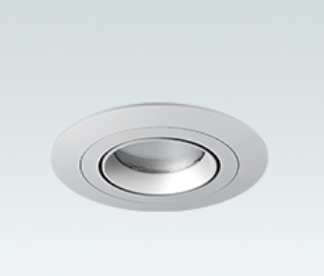

Round-shaped recessed spotlight, body in cast aluminum, available in Ø168mm and Ø112mm trim and trimless versions. The trim version comes with a spring for installation on a ceiling thickness of 1-25 mm, and the trimless version comes with brackets for a ceiling thickness of 6-25 mm. The unique pull-down mechanism enables Solo to function as either a downlight, a regressed accent light, or an exposed lamp head able to emulate a surface or track fixture.Fully adjustable light head is tiltable up to 45° and rotatable horizontally up to 360°.
