Product Detail
Home Products Detail

Products

LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
MODOC_RF_C00783WHWWF_3000K-52°
Single emission recessed downlights for indoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

Specification

Power
2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
124LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
1-10V DRIVER

See more

LINEALIGHT
WALL LIGHT
INDOOR LIGHTING


PROLICHT
CEILING LIGHT
INDOOR LIGHTING

The surface luminaire INVADER ON from the familiy INVADER consists of aluminum. With 2 powder coated options 625 colour combinations can be achieved. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). INVADER ON (# 320-0020) ist not dimmable (on/off). The spot with direct illumination corresponds to protection class SK1 at IP20. A PROLICHT lense pack is optionally available.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

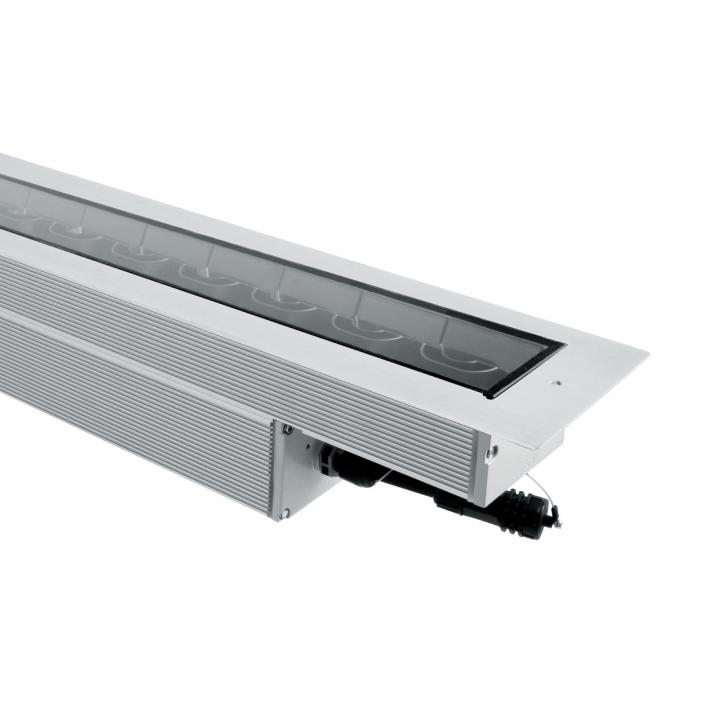

Single emission lines for outdoor application. The warm white LED light source is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 5.5 kg. The total absorbed power is 51 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99771 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with six flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
