WAKO

WALLWASHER

OUTDOOR LIGHTING

MINI CF210-15W-10X35

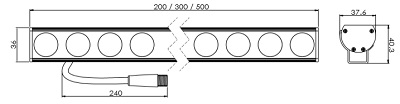

MINI WALL WASHER, Size 36 mm W x 28.7 mm H, come with Length 500mm / 300mm / 200mm. Number of LED per meter 30, Power Input 350mA Constant Current, Dimming 0-10V 1-10V DALI DMX PWM, IP40 or IP67 Protection.

Specification

Power

30W/M

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3600LM/M

Finishing

WHITE

IP Rating

IP67

Color Rendering

CRI90

Driver

ON/OFF DRIVER

LUCI

LED STRIP

INDOOR LIGHTING

Updated with low wattage high lumen LED series and 2 wattage variations Increased 160％ efficacy Narrower spread angle with the lens in diffused cover

LINEALIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP67,IK10.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a ultra spot light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 751 lm, with a 93.9 lm/W nominal luminous efficacy.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
