PHOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

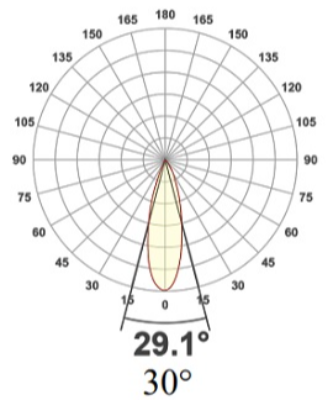

NA-EE-TF_2700K-30°

The Nano Eclipse Trimless is a recessed downlight with a trimless plaster in frame and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture, 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

115LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.021 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 15 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

FORMALIGHTING

LINEAR LIGHT

INDOOR LIGHTING

The Microline system is a custom design for a major retail lighting project. Surface-mounted modular linear LED system in extruded aluminum. Available in different lengths and configurations. LEDs in a wide variety of color temperatures, High Color Rendering with CRI up to 97 and R9 >90. Multiple diffuser options at your disposal can greatly enhance the overall aesthetic and functionality of a space. Dimming options are determined by the Power Supply, Remote Power Supply not included, to be ordered separately. Available in different lengths from min 185 mm to 1445 mm.Pitch or section length : 180mm.

FORMALIGHTING

REMOTE CONTROL DOWNLIGHT

INDOOR LIGHTING

Moto-Combo PRO are intelligent due to their inbuilt memory, allowing them to instantly recall pre-recorded position, color temperature, beam angle and dim level settings previously recorded via CASAMBI™ control app. The luminaire body made of aluminium and mounting ring of mild steel. Brackets for trim installation on ceiling thickness max. 25mm. Two DC motors drive the movements of the fixture, which is tiltable vertically 40° in all directions on a dual-axis gimbal.
