SPARK

RECESSED DOWNLIGHT
INDOOR LIGHTING

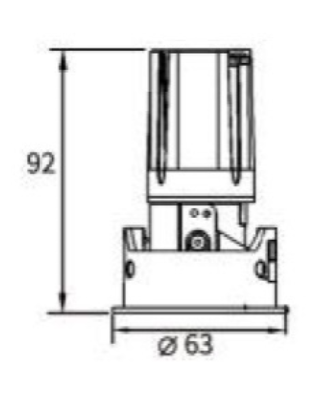

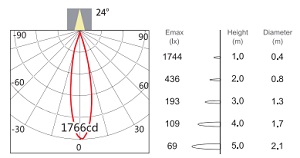

SPK1101-6W-24D

Recessed LED-COB downlight, die cast aluminium housing body. Various choices on CCT, beam angle and inner reflector.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
363LM
Finishing
ALUMINUM
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
CUSTOMIZED
BOLLARD
OUTDOOR LIGHTING

30CM Outdoor Lawn Round Ball CCT3000K Light Balls

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 65 x 65 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

A continuous-row LED lighting system created by trunking unit and LED luminaire. It appears a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking rail are perfectly matched to each other. Optics available 30°, 60°, 90°, 120°, Asymmetrical, Double asymmetrical and Diffuser.
