FORMALIGHTING

RECESSED SPOTLIGHT

INDOOR LIGHTING

TICTOK 25 SEMI-RECESSED TRIM_3000K-32°

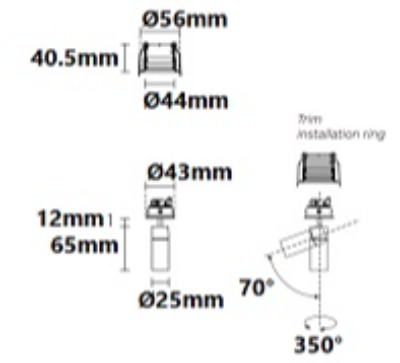

Semi-Recessed adds a touch of class to the space, the slender base with an integrated power supply brings extra flair and elegance. TicTok Series focuses on eco-friendly design and modularity. TicTok’s tool-free and interchangeable LED module facilitates design flexibility and ease of on-site maintenance. The tool-free interchangeable LED module is available in Ø25, Ø35, Ø45, Ø58 and Ø75mm head sizes, trim, and trimless. It provides full versatility with tiltable 70° and rotatable 350° angles:

Specification

Power

4.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

232LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

FLOS

BOLLARD

OUTDOOR LIGHTING

Single emission floor lamp or bollard & pole for outdoor application. The warm white LED light source with a diffused light distribution is composed of 40 topled LEDs. The luminaire body is made of aluminium and features a dark brown finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP65, IK09.

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

Zero 12 recessed fixed, Zero 12 recessed mini, and TwINO are recessed low voltage miniature spotlights designed & developed for retail, showcase display lighting applications.

Ultra-compact Zero 12 recessed fixed with a depth of 12mm fits in the shallow ceiling void.

MEYER

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate cover , silicon gasket, with 4 stainless steel screws, mounting brackets: 2 drilled holes Ø 6,5 mm, spacing 282 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 1175 lm, wattage: 15 W, delivered lumens 78 lm/W, protection typ IP65, protection class I, impact resistance IK10, windage area 0,04 m², dimensions (L×H×W): 328 × 47 × 135 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
