ELR

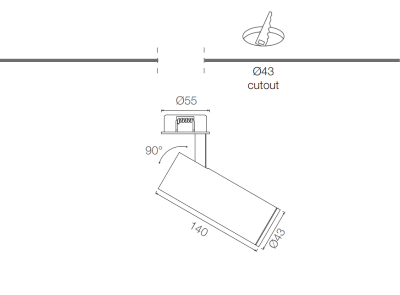

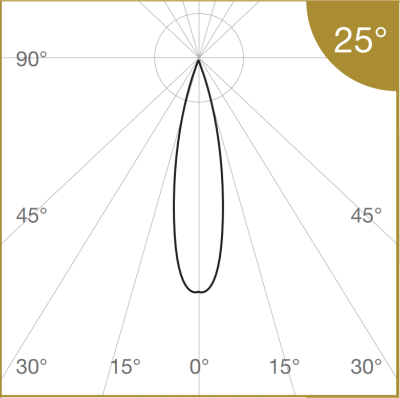

RECESSED SPOTLIGHT

INDOOR LIGHTING

ELR20C.25.27.PA.ND

An alternative form of ceiling mounted adjustable luminaires available in different sizes and output. Incorporating ELR’s signature modular concept design, LED modules are fully interchangeable with choices to flexibly illuminate designated areas and objects ideally for accent lighting applications.

Specification

Power

8.3W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

522LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

SIMES

SURFACE LINEAR LIGHT

INDOOR LIGHTING

Aluminium die cast housing in EN AB-44100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. 2 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5 -3% molybdenum content, with high resistance against corrosion. Steel screws treated with an advanced anticorrosive coating. Pre treated Silicone Gaskets.Thanks to the set back optics, the light source remains recessed to the view, ensuring excellent visual comfort.
