PROLICHT

RECESSED LINEAR LIGHT

INDOOR LIGHTING

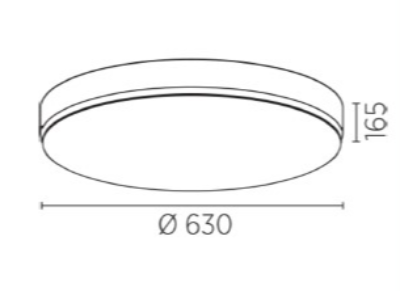

SIGN TRIMLESS_630

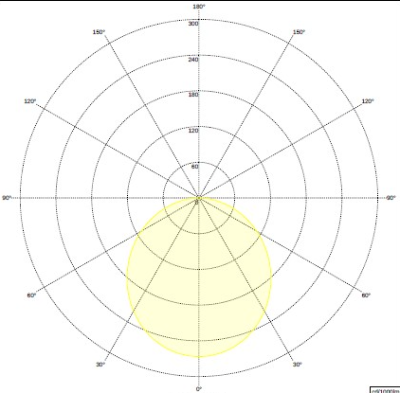

Edgeless luminaire · Photometric cover: Opal (PMMA) · invisible weld seams · Quick

assembly set available · "KORONA FRAME" · "MATTER"- Standard · 3-pole terminal

block · 240 Volt, 50/60 Hz · Direct light colors: optionally 3000K or 4000K. · LED

board coated with high-reflective material · MacAdam: 3 · 50,000 hours lifespan ·

Flicker-free operation with suitable electronic ballast · Light source can be replaced

by professional staff. · complies with EN 60598-1 · IP protection type IP20 · Electric

Specification

Power

58W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

6194LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI>80

Driver

DALI DRIVER

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Cut-out Ø130mm.

LUCE & LIGHT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Recessed downlights luminaire body made of aluminium heat-dissipating, carbon-fibre-reinforced semi crystalline techno polymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 430 stainless steel, laser cut, machined and finished. IP66.IK08.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.
