MEYER

SPOTLIGHT

OUTDOOR LIGHTING

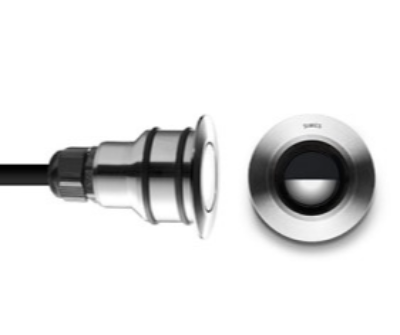

8 308 246 049

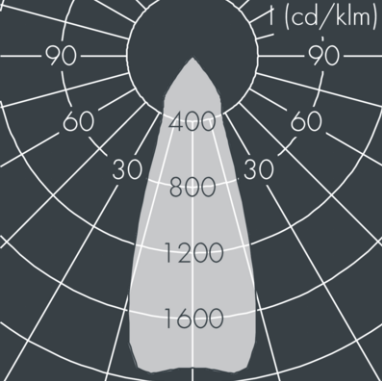

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, housing locked with a grub screw, ceiling mounting: 2 drilled holes Ø 4.5 mm, spacing 35 mm, cable gland: cable entry for recessed cable Ø 7‑10 mm , connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 37°, luminous flux: 330 lm, wattage: 5 W, delivered lumens 61 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 66 × 87 × 66 mm, weight 0.57 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

330LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 24 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 4.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 912 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

COLORS

LED NEON TUBE

OUTDOOR LIGHTING

'Silicone Neon Strip adopts bi-color/ tri-color co-extrusion process, featured baby-skin feel in touch and uniform & natural light in function. It shows great resistance to saline solutions, acid & alkali, corrosive gases, fire and UV. The series include Outline Neon for delicate micro-scene outlining, Magic Neon for innovative styling and Architecture Neon for facade and under-water lighting. The ingress protection degree is IP67,IK08.

LUCI

LED LIGHT BAR

INDOOR LIGHTING

The square cross-section silux K emits light from the diffused cover, 12 mm on the top and 3mm on both sides, so the light shines to the corners of the fixtures. 12×16mm homogeneous square section rigid light 3 different power consumption options to support energy saving project requirement With various length types and accessories ideal for various applications such as recessed mount, shelf and cove light.
