SPARK

ATHLON family is functional mini spotlight/ floodlight. The slim and clean design of Athlon allows a hidden installation. Athlon is designed for a streamlined time effective installation. Alanod Miro reflectors used in this luminaire are designed by Photopia high-end lighting engineering software. Tigh beam control utilizes selected lenses from world-renowned manufacturers. ATHLON is available with symmetric, asymmetric and bisymmetric light distributions and the broad range of accessories such as a ground, spike, tree strap, color filters, honey comb louver and glare shield hook makes it a dynamic floodlight choice. The graduated scale provides accuracy of the light distribution on the illuminated surface. ATHLON is suitable to light up small to medium sized objects or areas such as signage boards, ceiling, building facades, etc.

Single emission uplights for outdoor application. The warm white LED light source with a radial mono-directional emission light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 233 lm, with a 116.5 lm/W nominal luminous efficacy. The device body is made of aluminium and features a black finish, processed by means of open pore anodizing + powder coating. The ingress protection degree is IP67, IK10.

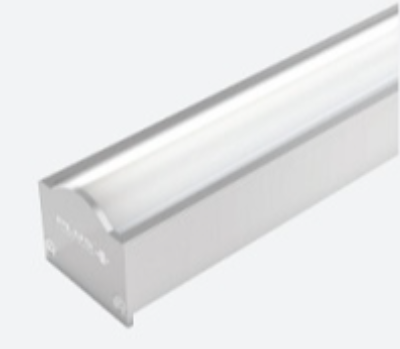

IP69. IK08. Marine-grade all aluminium construction. Anodized aluminium extrusion. PCS hardware. Silicone rubber gasket. Safety glass lens with opal diffuser. Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tyres, at a weight up to 5 tonnes per wheel. Max. static load, 3 tonnes (according to DIN EN 60598-2-13). Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible cable, including sealable junction box SJB. Linear PMMA LED lens. Factory installed LED circuit board. LED board can be easily removed for upgrading. Luminaire is factory sealed and does not need to be opened during installation. Integral electronic converter with DALI interface in thermally-separated compartment.

Luminaire made of aluminium alloy, aluminium and stainless steel. Clear synthetic cover with optical structure. Reflector made of pure anodised aluminium. Mounting plate with 3 fixing holes ø 6.5 mm. Angle 120° · Pitch circle ø 122 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 5 G 1.5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V, During DC operation the LED power is reduced to 50 % DALI controllable. A basic isolation exists between power cable and control line. Safety class I. Protection class IP 65. Dust-tight and protection against water jets. Impact strength IK10. Protection against mechanical. impacts < 20 joule. c – Conformity mark.
