LED LINEAR

The Nano Eyeconic Mini Trim Fixed is an incredibly discreet recessed, directional downlight with a Ø38mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components.

Sleek design luminaire for general lighting manufactured to length. Available as pendant, surface and recessed. Pleasing form factor of 42mm*62mm. 3 different mounting possibilities for homogeneity throughout a building. It is therefore possible to utilize the same product at different locations using different construction types. Freely scalable up to 4m.

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60‑100mm, adjustable aluminum mounting base, powder coated: 2 drilled holes Ø 9mm, tilt range: 80°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, Integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 7.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

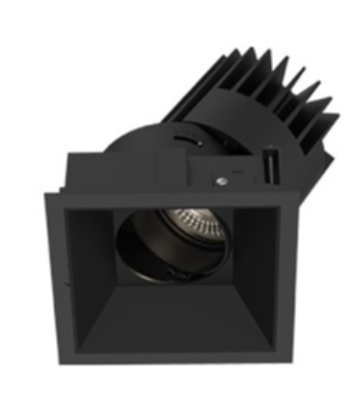

 Square recessed downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; System Power 28W; measurements 134mm x 134mm x 159mm; ceiling cutout of 122mm x 122mm with a narrow mounting trim; ceiling thickness 1-30mm; rotation 355° and pivot max. 30°; CCT 3000K with a System luminous flux of 2200lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips.
