BEGA

FLOODLIGHT

OUTDOOR LIGHTING

85 010 K3

Our care in the development and manufacture of BEGA luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation. BEGA works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.

Specification

Power

7.4W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

631LM

Finishing

ALUMINIUM

IP Rating

IP65

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

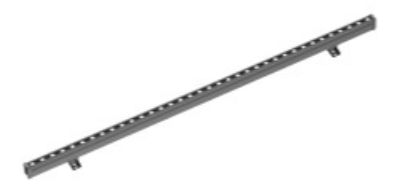

LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and CCT plus a variety of light engines ranging from static white to RGBW. Polyurethane is utilized in ADONIS Architectural to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminium profile with an IK10 certification.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 48° / 52°, luminous flux: 5288 lm, wattage: 46 W, delivered lumens 116 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission recessed downlights for indoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
