TRAXON

LED DOT

OUTDOOR LIGHTING

ALLEGRO DOT L RGBW_DIFFUSED

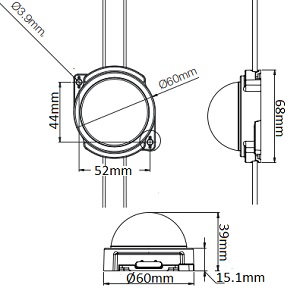

Allegro Dot is the next generation of intelligent media dot family. The dots are constructed on a flexible cable with customizable pitch. The dots can provide advanced features and flexibility for lighting design and project execution. Customizable pitch containing up to 40 RGB/ 36RGBW dots max in Dot M and 28 RGB/ 26RGBW dots max in Dot L. IP66.67. DIMENSION:Ø68x60(L)x39(H)mm.

Specification

Power

Color Temperature

RGBW

Light Source Type

LED

Lumen Output

72LM

Finishing

WHITE

IP Rating

IP67

Color Rendering

CRI80

Driver

DMX 512

DALITEK

CONTROL SYSTEM

1 in 6 out. 6 channel DMX controlled mains relay. Can beswitched independently. DIN rail or surface mounted. Allconnections via screw terminals. Entry-Level inputprotection.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 3 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 1.1 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 90 x 160 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

TRAXON

FLOODLIGHT

OUTDOOR LIGHTING

The Allegro Washer AC SW is an intelligent, AC line powered high brightness luminaire family. The fixture is controllable via DMX512. The simplicity of the luminaire’s topology means it can be easily daisy-chained to form long runs. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire lighting installation. The ingress protection degree is IP66,IK10. DIMENSIONS: (Ø)235x(H)317x(D)203mm.

FLOS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

LED - Power LED - 3W - 207lm - 2700K - CRI> 90 - Beam° 26. Adjustable/tiltable angle 17/17Deg. UGRL < 16, Rf=89, Rg=101, Available with different type of power supply - Non Dimmable, Dimmable DALI2, 1-10V, Main cut dimming
