WE-EF

INGROUND UPLIGHT
OUTDOOR LIGHTING
ETV139_186-0359

IP69. IK08. Marine-grade all aluminium construction. Anodized aluminium extrusion. PCS hardware. Silicone rubber gasket. Safety glass lens with opal diffuser. Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tyres, at a weight up to 5 tonnes per wheel. Max. static load, 3 tonnes (according to DIN EN 60598-2-13). Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible cable, including sealable junction box SJB. Linear PMMA LED lens. Factory installed LED circuit board. LED board can be easily removed for upgrading. Luminaire is factory sealed and does not need to be opened during installation. Integral electronic converter with DALI interface in thermally-separated compartment.

Specification

Power
3W
Color Temperature
3000K
Light Source Type
48 LEDS
Lumen Output
198LM
Finishing
BLACK ALUMINIUM
IP Rating
IP69
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector.

LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

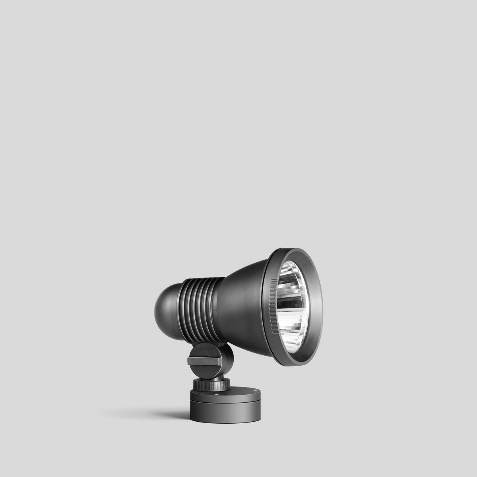

Single emission projectors for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Lightplane 2.5 Wall Washer is a compact and streamlined luminaire that provides direct, indirect or direct-indirect illumination from a suspended, wall or surface mounted channel. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.
SPARK
SURFACE MAGNETIC TRACK PENDANT
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Honeycomb accessory available upon request.
