LUCE & LIGHT

BOLLARD

OUTDOOR LIGHTING

PIVOT B 2.9_14W-25°

Outdoor Surface mount bollard made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion. Screen in serigraphed, tempered extra-clear glass. Accessories come with honeycomb louvre. Pole available in 500mm, 800mm and 1100mm 3 different height. IP66, IK08,

Specification

Power

14W

Color Temperature

3000K

Light Source Type

COB

Lumen Output

862LM

Finishing

ANTHRACITE

IP Rating

IP66

Color Rendering

CRI ≥90

Driver

CASAMBI

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60‑100mm, adjustable aluminum mounting base, powder coated: 2 drilled holes Ø 9mm, spacing 75mm, 1 centre hole Ø 17mm, tilt range: 205°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

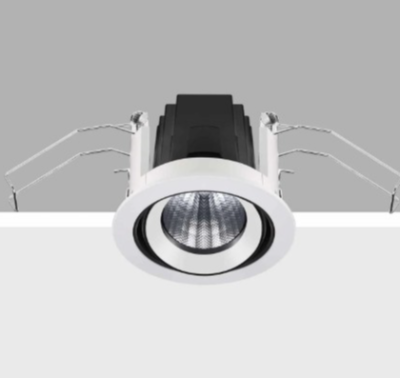

Recessed adjustable rectangular downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable square downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.
