Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Luminaire can be mounted for up or down lighting. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings;
suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six wide flood square light elements;
symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with
micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved
heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux
after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of
protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available
as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an
authorized professional; clank-free;
Lightplane Linear Wall Washer Recessed Trim is a large recessed, wall washing fixture with trim. The fixture is available with with multiple lamping options including LED, Tunable White LED, RGB colour changing LED.
Round adjustable downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector. Rotation 355° and pivot max. Lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54).
Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector have chrome black, silver and white finish available. Black finish and honeycomb accessory available upon request.
Single emission recessed downlights for indoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

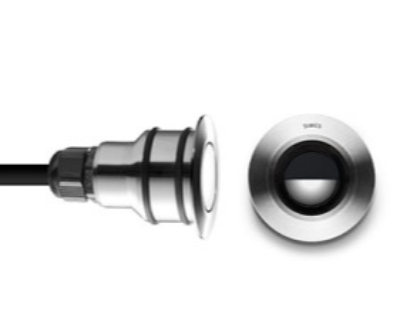

Outdoor inground uplight luminaire body made of die-cast aluminium en ab - 46100 and
features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; IK10
LED modular system for recessed No Trim installation, including LED luminaires, aluminum installation profile and diffusers. Drivers included in lighting modules for 220-240V connection to mains or to other lighting modules.
Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance.
Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser
12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.
